Workflow practices for reproducible analysis

Dr. Mine Dogucu

1 / 46

Review

Quiz

2 / 46

Goals

  • Naming files
  • README.md
  • gitignore
  • Importing data
  • Collaborating on GitHub
3 / 46

Naming files

4 / 46

Three principles of naming files

  • machine readable
  • human readable
  • plays well with default ordering (e.g. alphabetical and numerical ordering)

(Jenny Bryan)

for the purposes of this class an additional principle is that file names follow

  • tidyverse style (all lower case letters, words separated by HYPHEN)
5 / 46

README.md

6 / 46
  • README file is the first file users read. In our case a user might be our future self, a teammate, or (if open source) anyone.
7 / 46
  • README file is the first file users read. In our case a user might be our future self, a teammate, or (if open source) anyone.

  • There can be multiple README files within a single directory: e.g. for the general project folder and then for a data subfolder. Data folder README's can possibly contain codebook (data dictionary).

8 / 46
  • README file is the first file users read. In our case a user might be our future self, a teammate, or (if open source) anyone.

  • There can be multiple README files within a single directory: e.g. for the general project folder and then for a data subfolder. Data folder README's can possibly contain codebook (data dictionary).

  • It should be brief but detailed enough to help user navigate.

9 / 46
  • README file is the first file users read. In our case a user might be our future self, a teammate, or (if open source) anyone.

  • There can be multiple README files within a single directory: e.g. for the general project folder and then for a data subfolder. Data folder README's can possibly contain codebook (data dictionary).

  • It should be brief but detailed enough to help user navigate.

  • a README should be up-to-date (e.g. from proposal to presentation stage of final projects they need to be updated).

10 / 46
  • README file is the first file users read. In our case a user might be our future self, a teammate, or (if open source) anyone.

  • There can be multiple README files within a single directory: e.g. for the general project folder and then for a data subfolder. Data folder README's can possibly contain codebook (data dictionary).

  • It should be brief but detailed enough to help user navigate.

  • a README should be up-to-date (e.g. from proposal to presentation stage of final projects they need to be updated).

  • On GitHub we use markdown for README file (README.md). Good news: emojis are supported.

11 / 46

.gitignore

A .gitignore file contains the list of files which Git has been explicitly told to ignore.

13 / 46

.gitignore

A .gitignore file contains the list of files which Git has been explicitly told to ignore.

For instance README.html can be git ignored.

14 / 46

.gitignore

A .gitignore file contains the list of files which Git has been explicitly told to ignore.

For instance README.html can be git ignored.

You may consider git ignoring confidential files (e.g. some datasets) so that they would not be pushed by mistake to GitHub.

15 / 46

.gitignore

A .gitignore file contains the list of files which Git has been explicitly told to ignore.

For instance README.html can be git ignored.

You may consider git ignoring confidential files (e.g. some datasets) so that they would not be pushed by mistake to GitHub.

A file can be git ignored either by point-and-click using RStudio's Git pane or by adding the file path to the .gitignore file. For instance weather.csv data file in a data folder need to be added as data/weather.csv

16 / 46

.gitignore

A .gitignore file contains the list of files which Git has been explicitly told to ignore.

For instance README.html can be git ignored.

You may consider git ignoring confidential files (e.g. some datasets) so that they would not be pushed by mistake to GitHub.

A file can be git ignored either by point-and-click using RStudio's Git pane or by adding the file path to the .gitignore file. For instance weather.csv data file in a data folder need to be added as data/weather.csv

Files with certain files (e.g. all .log files) can also be ignored. See git ignore patterns.

17 / 46

Importing data

18 / 46

Importing .csv Data

readr::read_csv("dataset.csv")
19 / 46

Importing Excel Data

readxl::read_excel("dataset.xlsx")
20 / 46

Importing Excel Data

readxl::read_excel("dataset.xlsx", sheet = 2)
21 / 46

Importing SAS, SPSS, Stata Data

library(haven)
# SAS
read_sas("dataset.sas7bdat")
# SPSS
read_sav("dataset.sav")
# Stata
read_dta("dataset.dta")
22 / 46

Where is the dataset file?

Importing data will depend on where the dataset is on your computer. However we use the help of here::here() function. This function sets the working directory to the project folder (i.e. where the .Rproj file is).

read_csv(here::here("data/dataset.csv"))
23 / 46

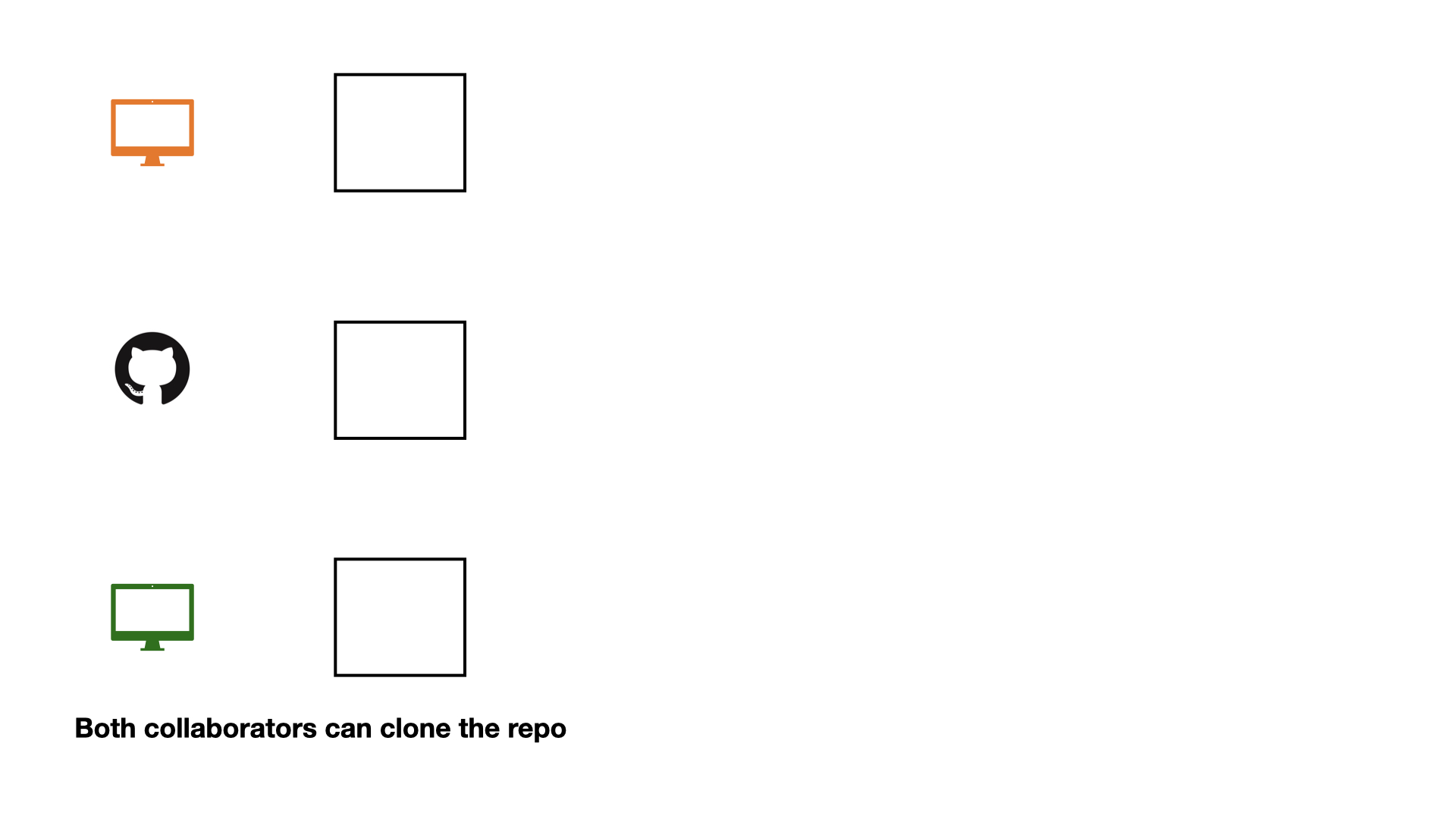

Collaborating on GitHub

24 / 46

25 / 46

26 / 46

27 / 46

28 / 46

29 / 46

30 / 46

31 / 46

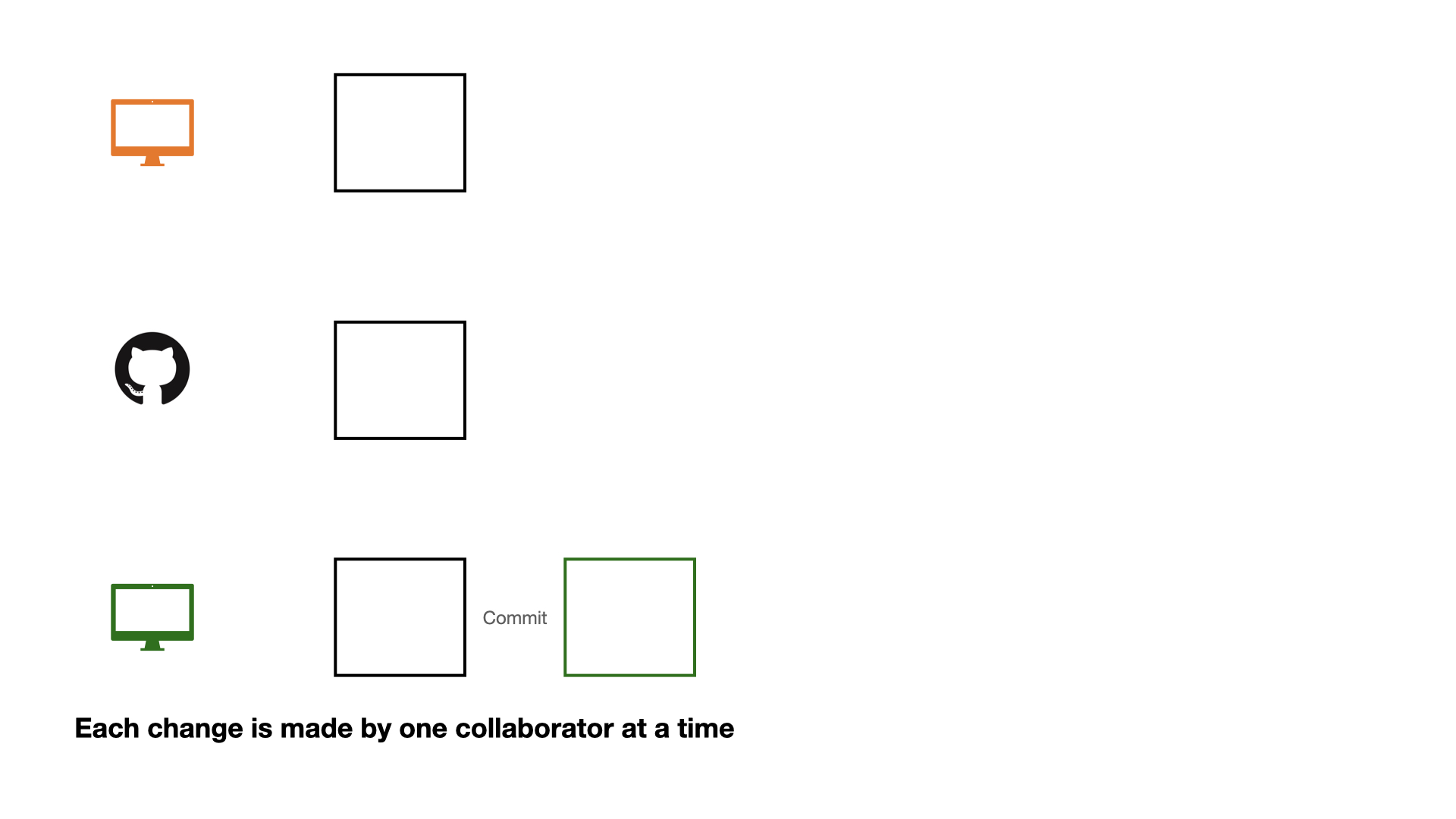

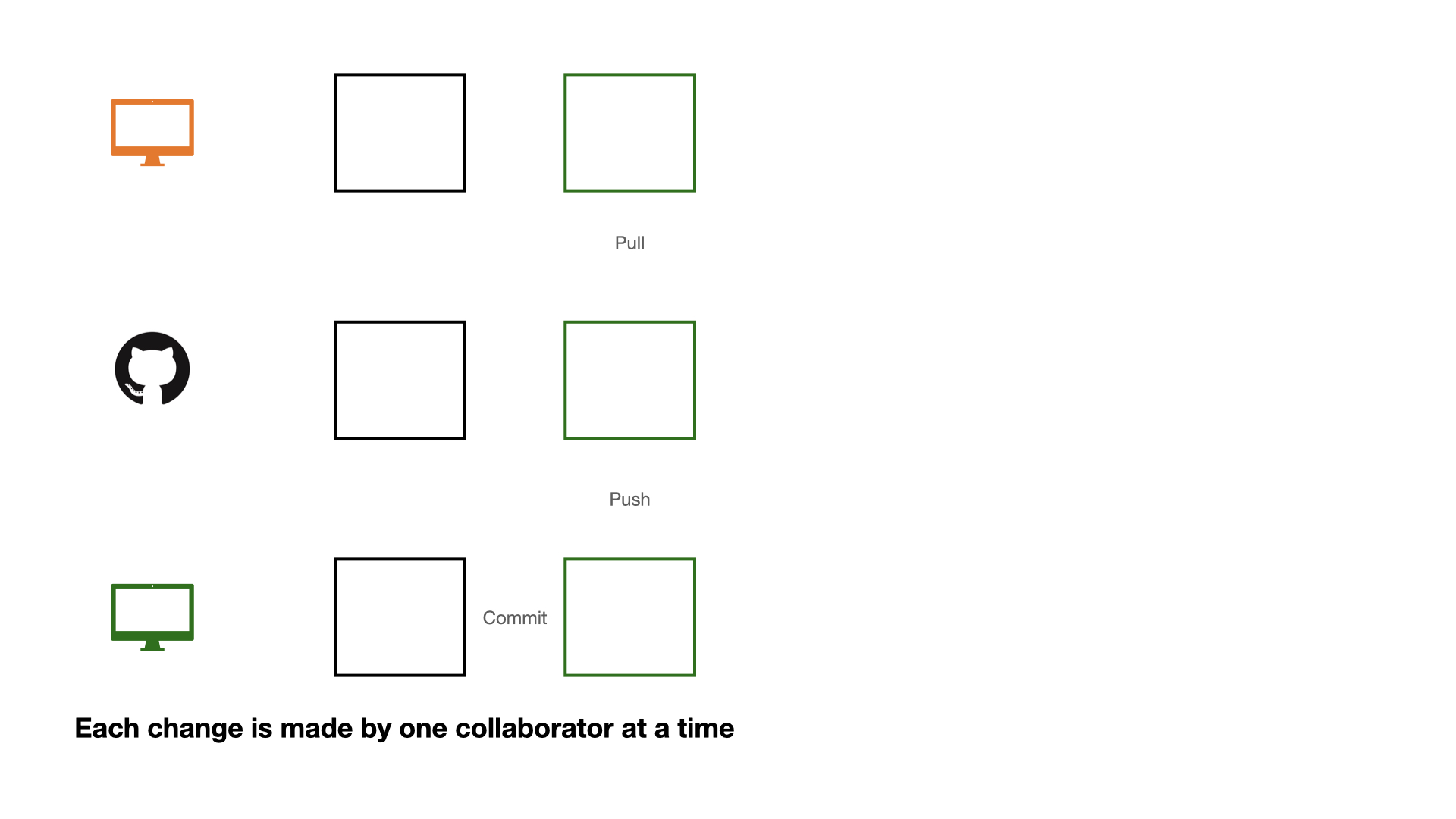

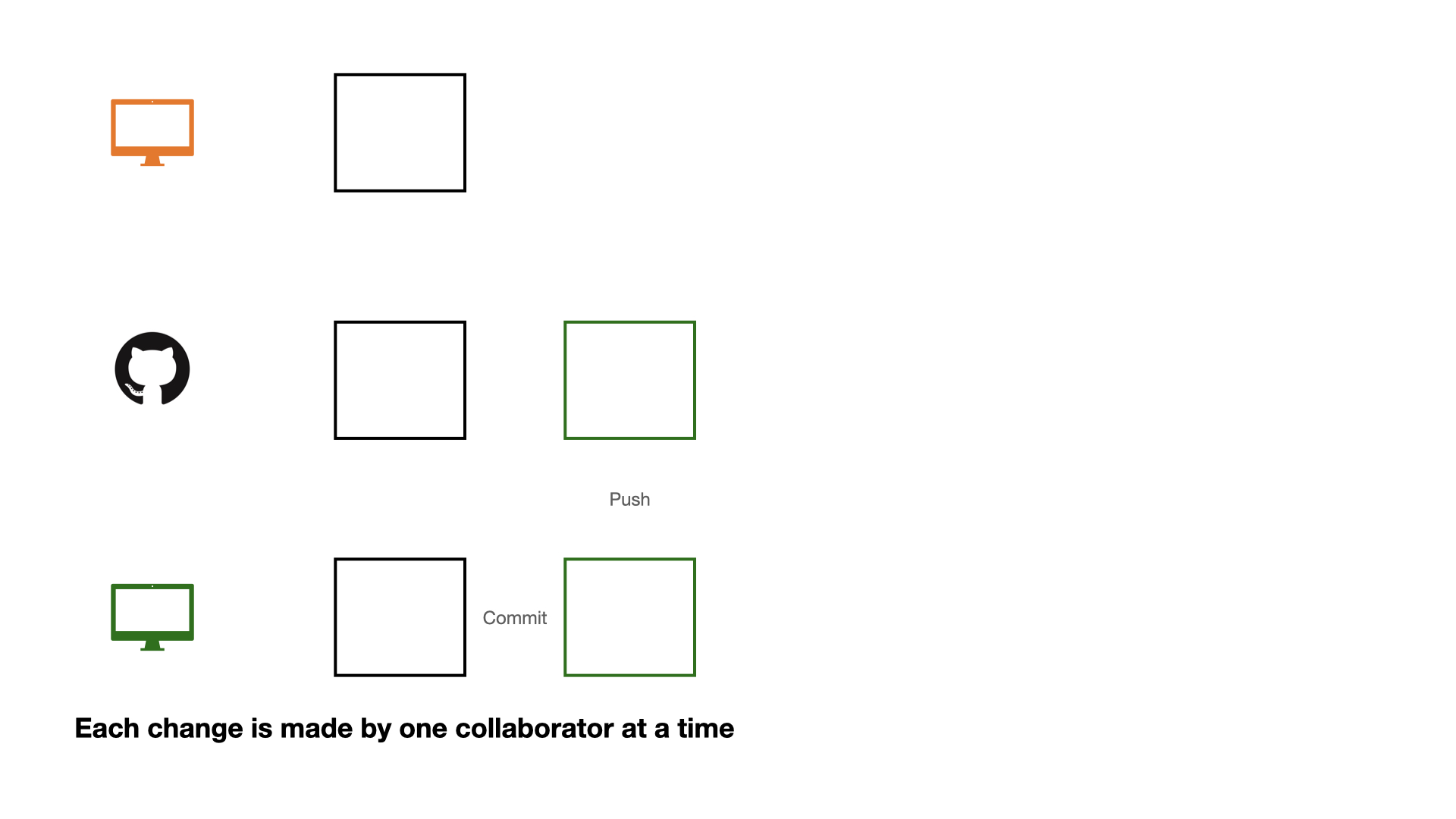

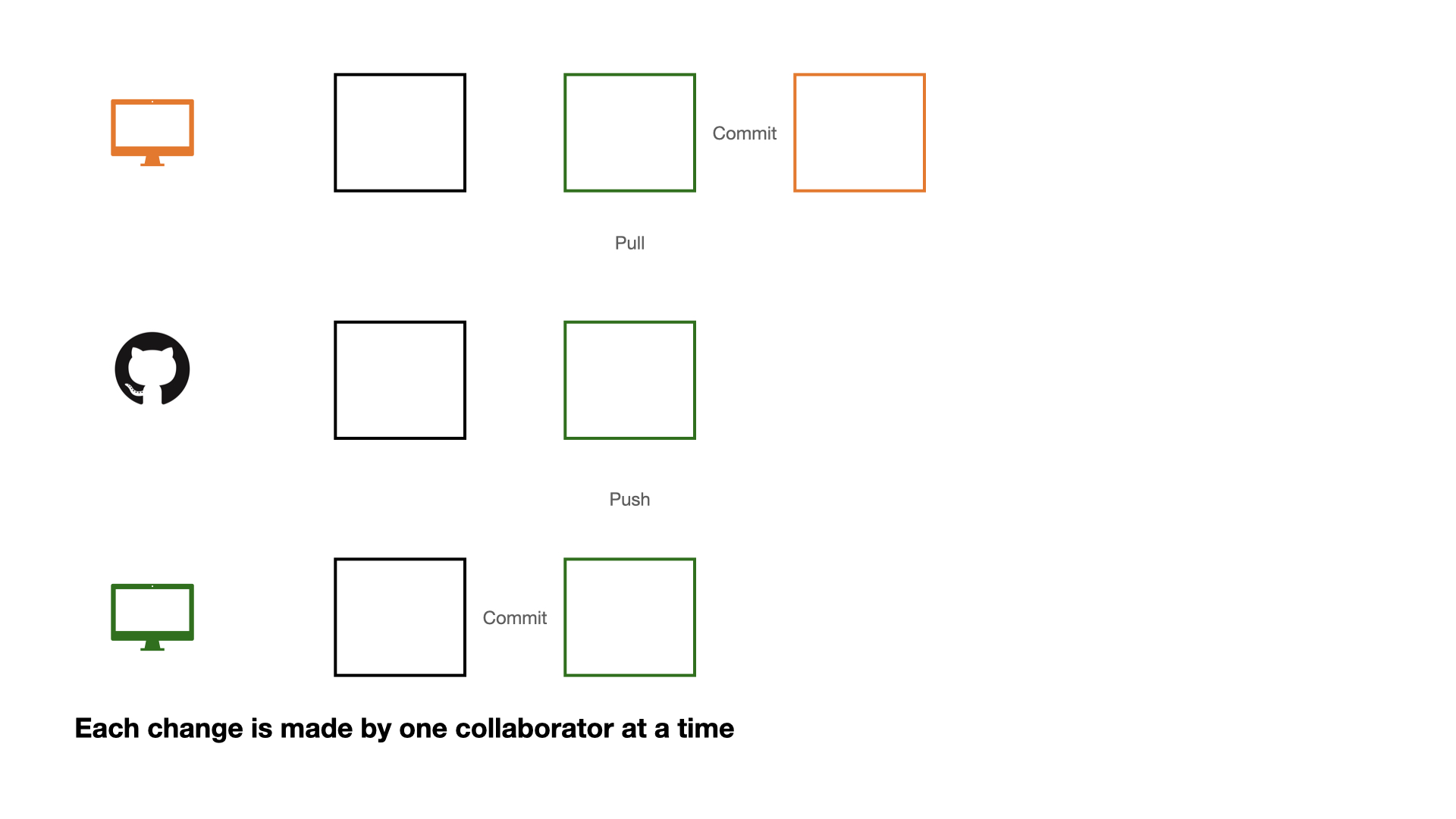

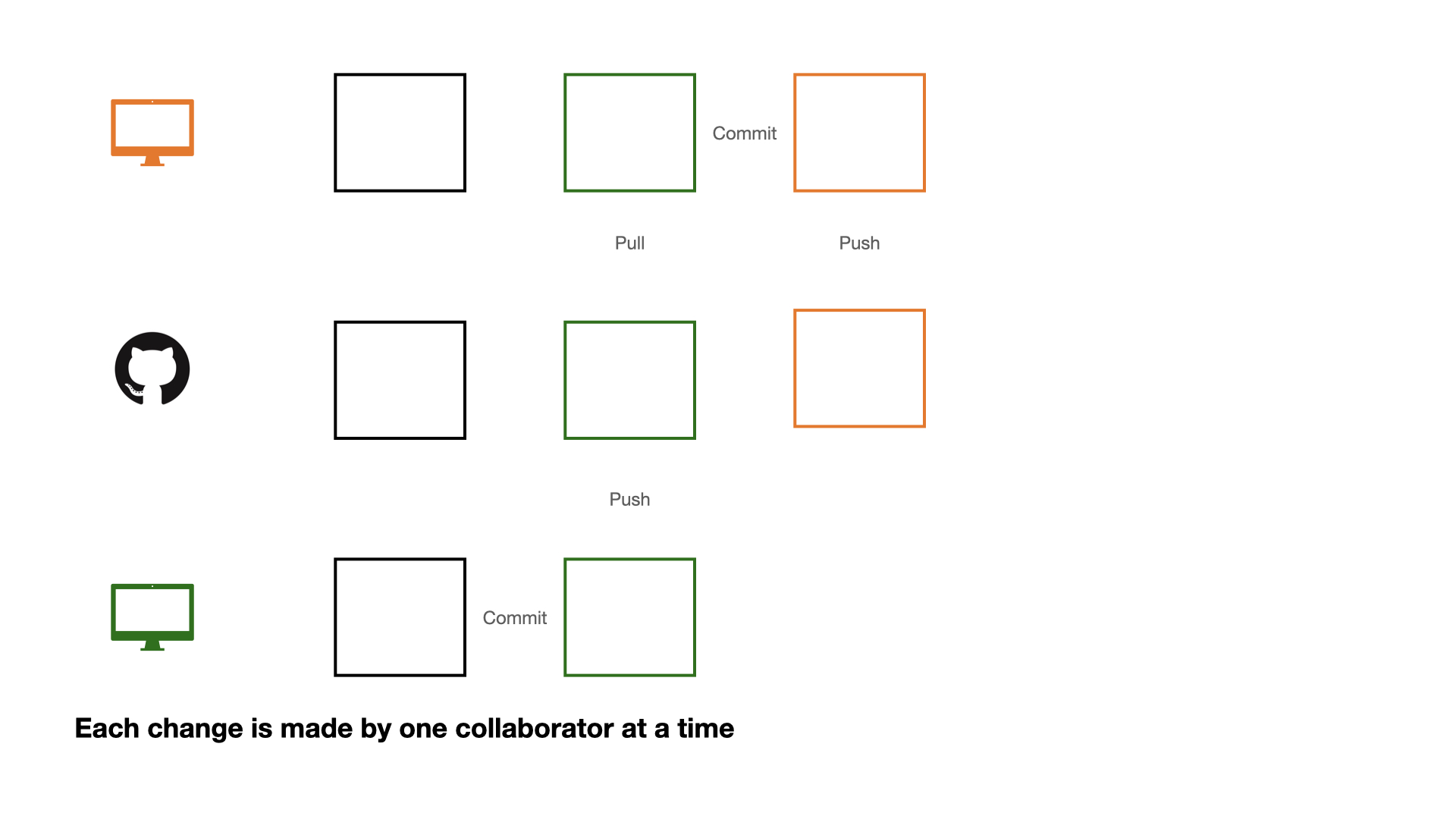

If each change is made by one collaborator at a time, this would not be an efficient workflow.

32 / 46
33 / 46

34 / 46

35 / 46

36 / 46

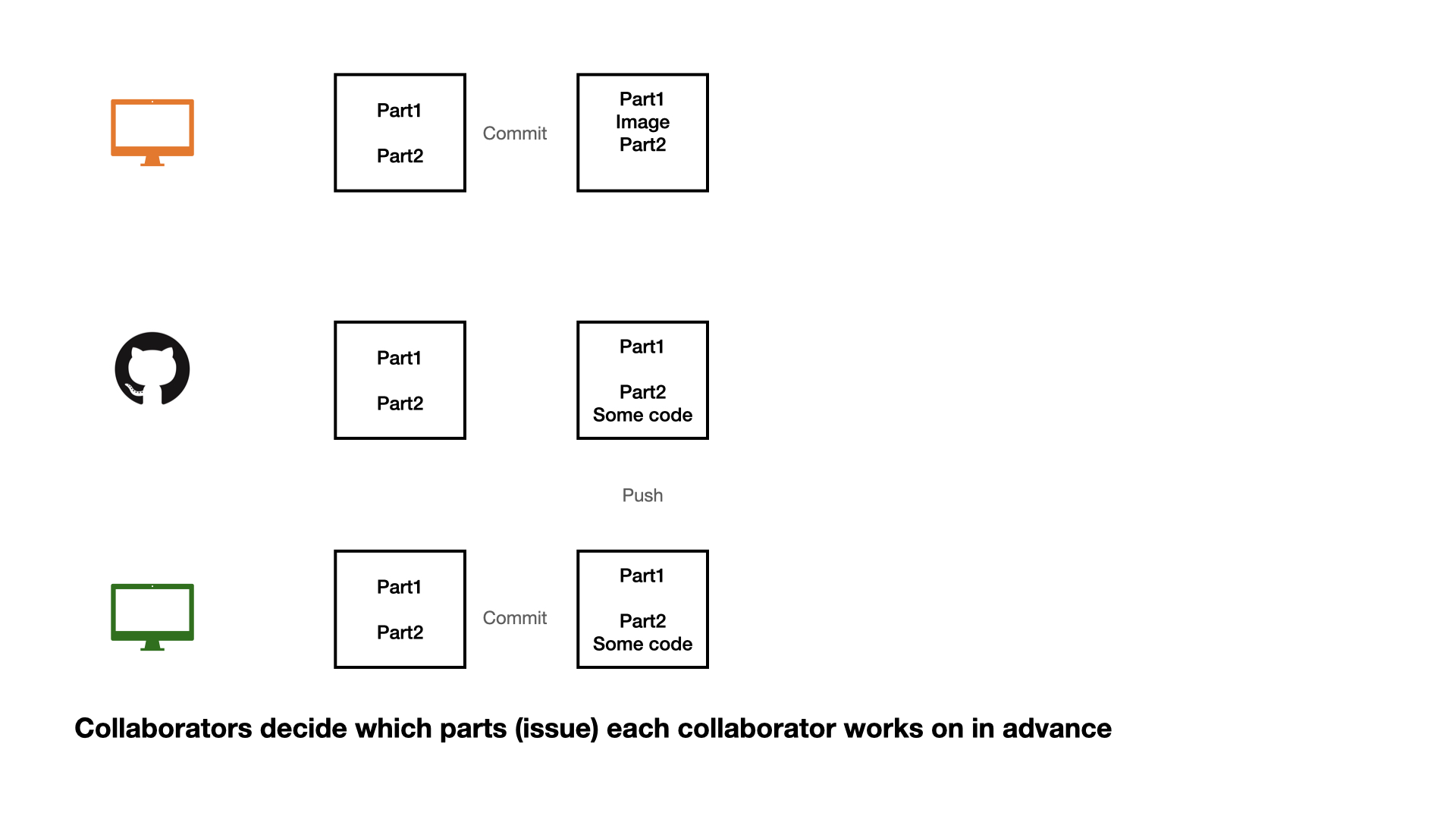

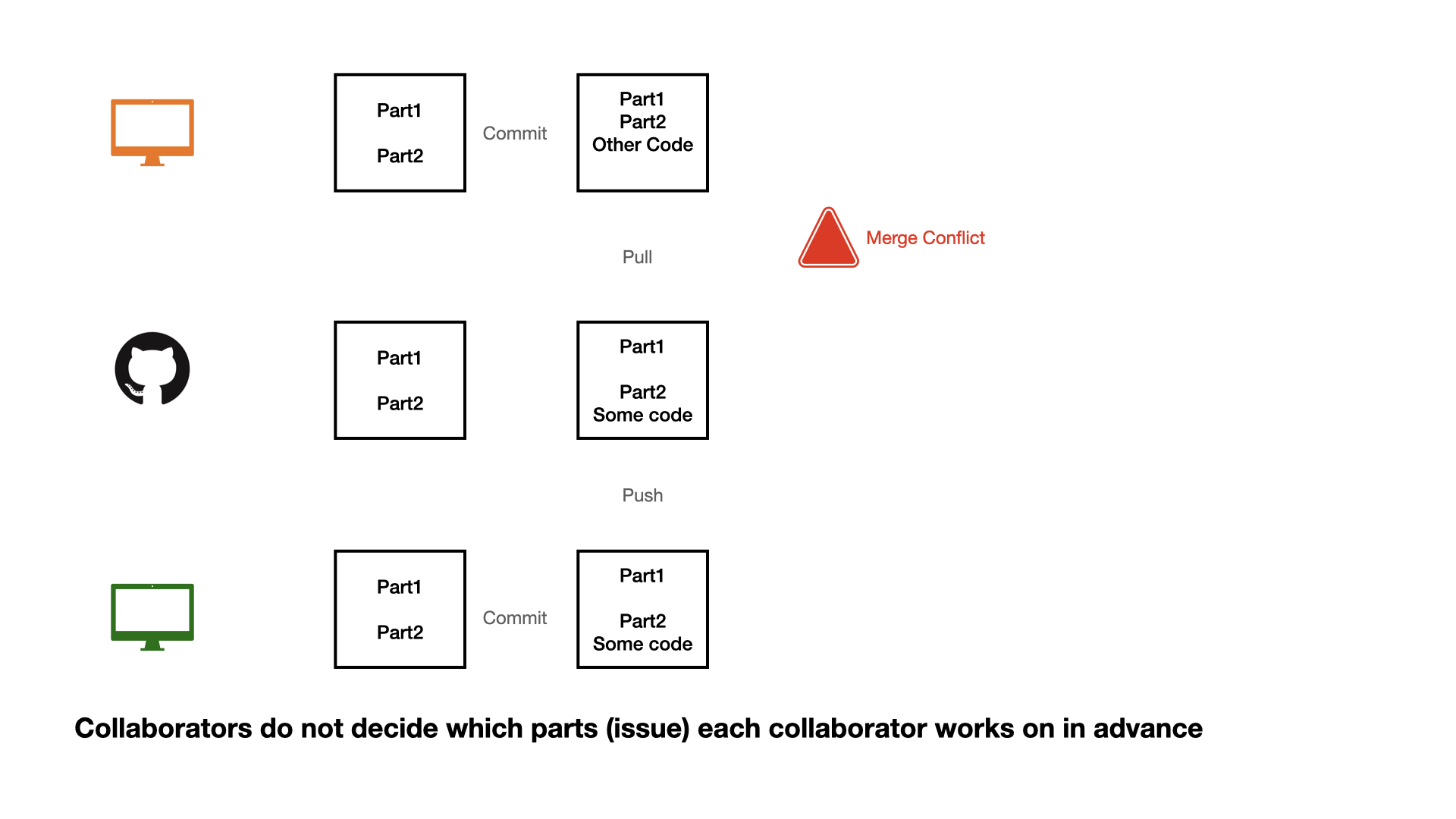

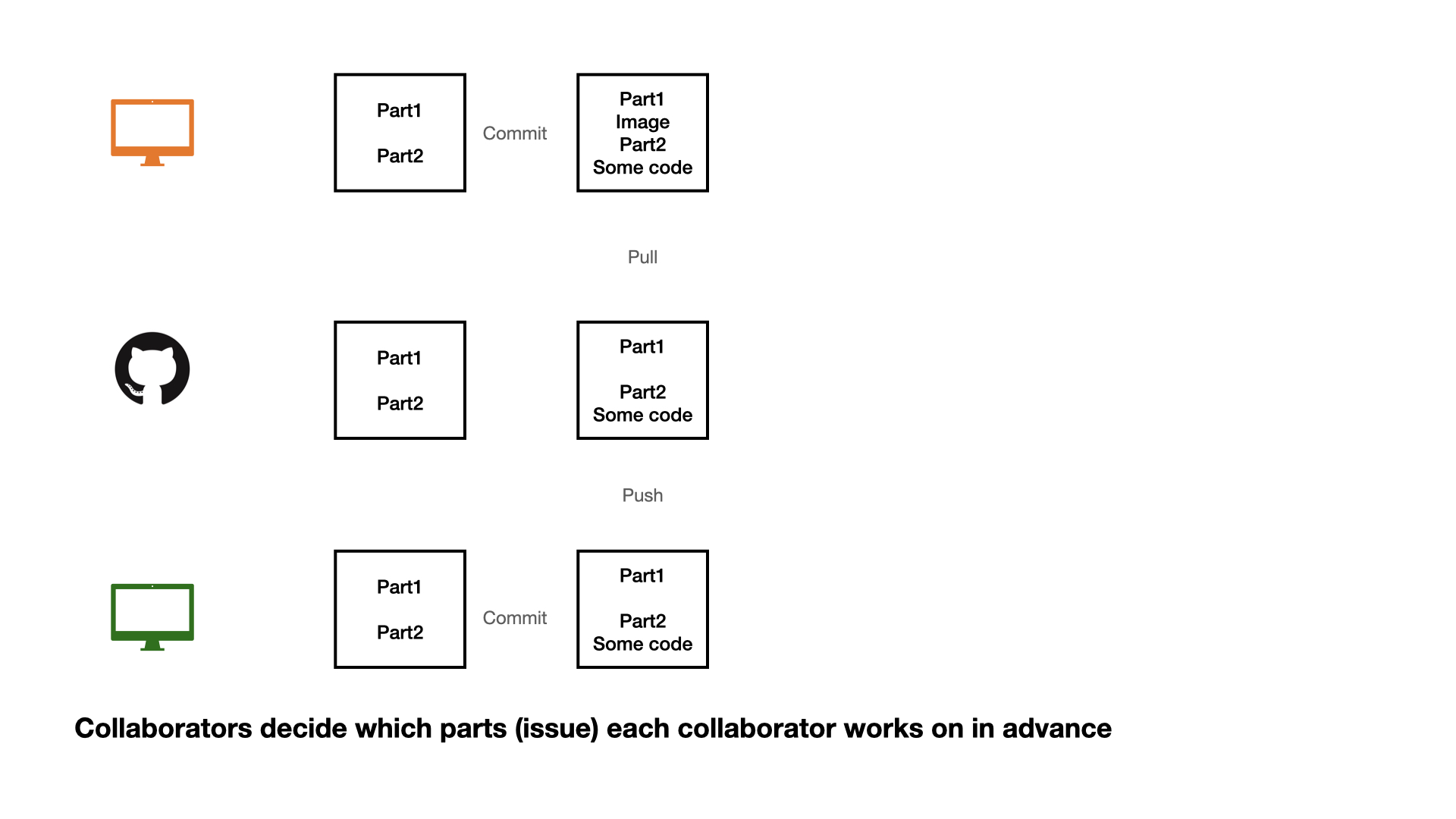

1 - commit

2 - pull (very important)

3 - push

37 / 46

38 / 46

39 / 46
40 / 46

41 / 46

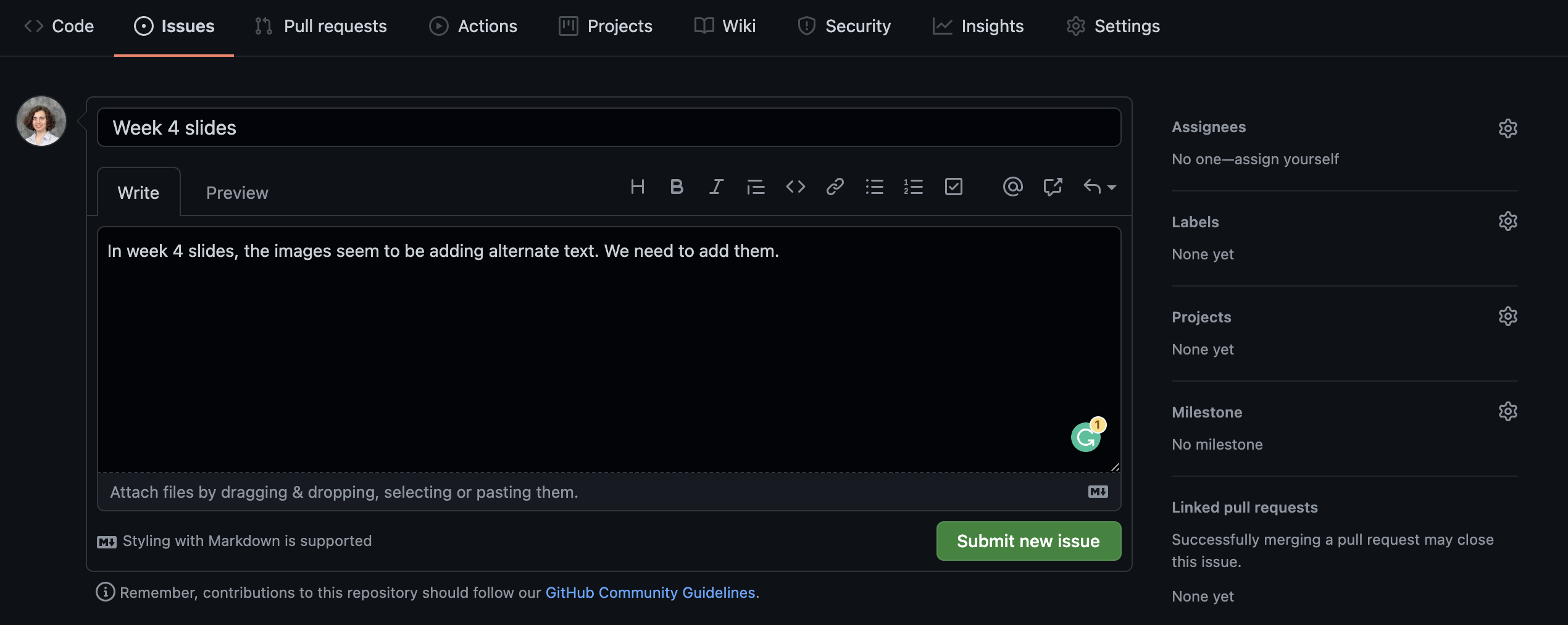

Opening an issue

We can create an issue to keep a list of mistakes to be fixed, ideas to check with teammates, or note a to-do task. You can assign tasks to yourself or teammates.

42 / 46

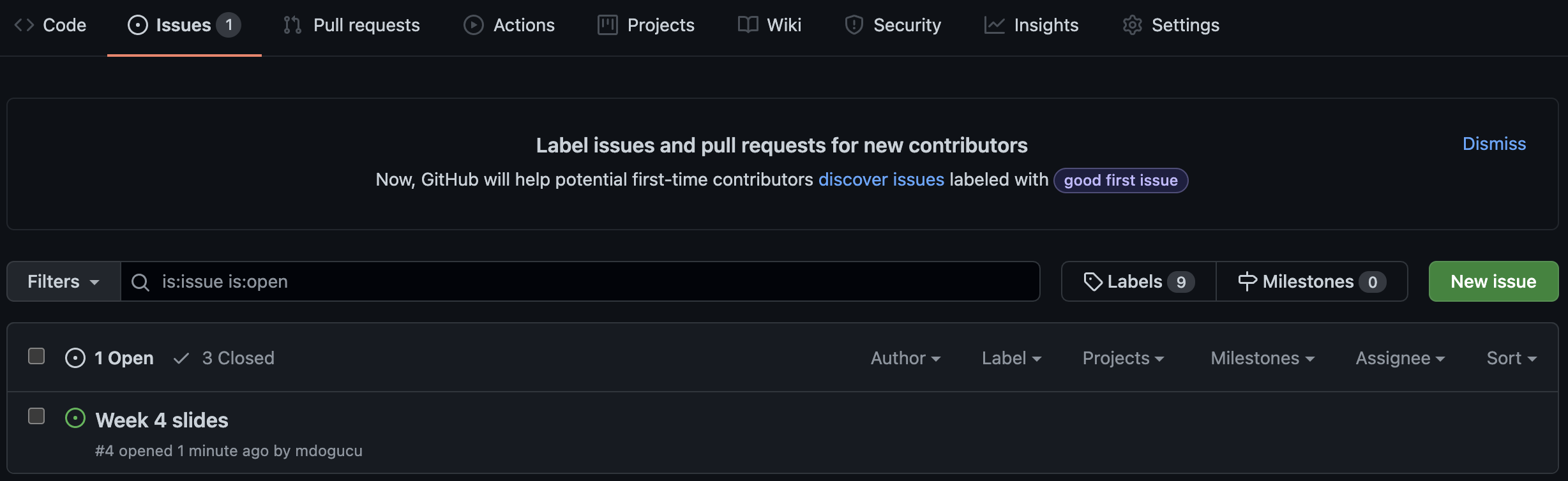

Closing an issue

If you are working on an issue, it makes sense to refer to issue number in your commit message (e.g. "add first draft of alternate texts for #4"). If your commit resolves the issue then you can use key words such as "fixes #4" or "closes #4" to close the issue. Issues can also be manually closed.

43 / 46

It is also a good practice to save session information as package versions change, in order to be able to reproduce results from an analysis we need to know under what technical conditions the analysis was conducted.

sessionInfo()
R version 4.1.0 (2021-05-18)
Platform: x86_64-apple-darwin17.0 (64-bit)
Running under: macOS Big Sur 10.16
Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/4.1/Resources/lib/libRblas.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.1/Resources/lib/libRlapack.dylib
locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8
attached base packages:
[1] stats graphics grDevices utils datasets methods base
other attached packages:
[1] forcats_0.5.1 stringr_1.4.0 dplyr_1.0.7 purrr_0.3.4
[5] readr_2.0.2 tidyr_1.1.4 tibble_3.1.5 ggplot2_3.3.5
[9] tidyverse_1.3.1
loaded via a namespace (and not attached):
[1] tidyselect_1.1.1 xfun_0.26 bslib_0.3.1 haven_2.4.3
[5] colorspace_2.0-2 vctrs_0.3.8 generics_0.1.0 htmltools_0.5.2
[9] yaml_2.2.1 utf8_1.2.2 rlang_0.4.11 jquerylib_0.1.4
[13] pillar_1.6.3 withr_2.4.2 glue_1.4.2 DBI_1.1.1
[17] dbplyr_2.1.1 modelr_0.1.8 readxl_1.3.1 lifecycle_1.0.1
[21] cellranger_1.1.0 munsell_0.5.0 gtable_0.3.0 rvest_1.0.1
[25] evaluate_0.14 knitr_1.36 tzdb_0.1.2 fastmap_1.1.0
[29] fansi_0.5.0 highr_0.9 broom_0.7.9 Rcpp_1.0.7
[33] scales_1.1.1 backports_1.2.1 jsonlite_1.7.2 fs_1.5.0
[37] hms_1.1.1 digest_0.6.28 stringi_1.7.5 xaringan_0.22.1
[41] grid_4.1.0 cli_3.0.1 tools_4.1.0 magrittr_2.0.1
[45] sass_0.4.0 crayon_1.4.1 pkgconfig_2.0.3 ellipsis_0.3.2
[49] xml2_1.3.2 reprex_2.0.1 lubridate_1.8.0 rstudioapi_0.13
[53] assertthat_0.2.1 rmarkdown_2.11 httr_1.4.2 R6_2.5.1
[57] compiler_4.1.0
44 / 46

A better way to keep track of package versions, system settings during compiling a project is by using renv::snapshot(). This function will create a renv.lock and will take a snapshot of packages to be stored in this file.

45 / 46

Even a better approach for reproducible versions would be using Docker.

46 / 46
